Garmin GPSMAP 7607xsv Multifunction Display Review

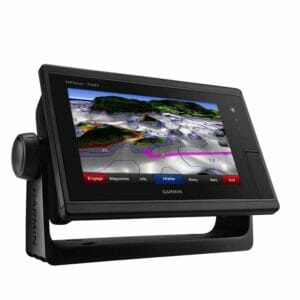

Garmin GPSMAP 7607xsv Multifunction Display

The Garmin GPSMAP 7607xsv Multi-function Display is a versatile chartplotter that integrates high-end functionality with easy operation. Designed for yachtsmen, sailors, cruisers, and racing enthusiasts, the GPSMAP 7607xsv features a vivid 7” multi-touch widescreen display coupled with a high-precision, 10Hz internal GPS. It provides frequent position and heading updates, facilitating smooth on-screen navigation.

Premium Navigation Features

Expanding its connectivity options, the GPSMAP 7607xsv offers full network compatibility, supporting the Garmin Network, NMEA 2000 interfaces, and built-in Wi-Fi® connectivity. Alongside Garmin Helm™ and BlueChart® Mobile, this robust device houses advanced sailing features such as lay-lines, enhanced wind rose, tide and current slider, and more.

Preloaded BlueChart g2 maps and LakeVü HD Maps

The device comes preloaded with robust BlueChart® g2 and LakeVü™ HD maps that offer extensive chart details including tidal stations, currents, depth contours, and IALA symbols. These details assist mariners with seamless transitions between zoom levels and across chart boundaries. Additionally, users can customize their screen with Safety Shading to highlight all depth contours shallower than their boat’s safe depth.

What’s In The Box:

  • GPSMAP 7607 J1939, preloaded with U.S. BlueChart® g2 and U.S. LakeVü™ HD
  • J1939 connector for receiving engine data
  • Power/data cable
  • NMEA 2000® drop cable
  • T-connector
  • Bail mount with knobs
  • Flush mount kit
  • Protective cover
  • Documentation

Product Specifications

The specifications for the GPSMAP 7607xsv are:

  • Display Type: Multi-touch widescreen LCD
  • Screen Size: 7″ diagonal
  • Screen Resolution: 800 x 480
  • Included Cartography: BlueChart g2 coastal and LakeVü HD inland
  • Optional Cartography: LakeVü HD Ultra with Max Def Lakes, BlueChart g2 Vision
  • Receiver Type: High-sensitivity 10Hz WAAS GPS/GLONASS receiver
  • Voltage: 10-32V DC
  • NMEA Interface: NMEA 0183, NMEA 2000, Garmin Marine Network
  • Dimensions: 8 3/4″W x 5 5/8″H x 2 5/8″D
  • Waterproof Rating: IPX7
  • Warranty: Two years

The GPSMAP 7607xsv delivers a blend of advanced features to meet the demands of all sailing enthusiasts. With its sophisticated technology, your journey on the water is set to become safer, enjoyable, and most importantly, precise.
