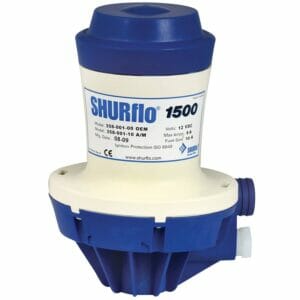

Shurflo Livewell 1500 & 2000 Pumps Specifications
The Shurflo Livewell 1500 and 2000 Pumps come with a removable cartridge and are anti-airlock. They feature tough nylon housing and a washdown port connection. Fully submersible, they come with a tinned 6′ wire assembly. They are also ignition protected in compliance with ISO 8846 standards. Inlet and outlet measurements stand at 1″ for NPT and 1-1/8″ for BARB respectively. The power supply is rated at 12 VDC.
Specifications of Pumps
- Voltage: 12 VDC
- Dimensions: 6.5″ x 3.75″ [165 x 95 mm]
1500 Pump Details
- Flow Rate: 1500 GPH [5678 LPH]
- Maximum Amps: 8
2000 Pump Details
- Flow Rate: 2000 GPH [5678 LPH]
- Maximum Amps: 8
