Replacing a Rotten Transom: A Guide to Maintaining Your Boat’s Safety and Reliability

If you’re a boat owner, you know that regular maintenance is crucial to keeping your vessel in top condition. One of the most important aspects of boat maintenance is addressing any issues with the transom, which is the vertical part of the boat’s stern that connects the hull to the motor. If your transom is showing signs of rot or other damage, it’s important to replace it before it causes more significant problems. Here’s how I replaced a rotten transom on my boat:

Step 1: Inspect the Transom

Before you can begin replacing the transom, you need to inspect it to assess the extent of the damage. Check for soft spots or discoloration that may indicate rot. If you suspect the transom is rotten, drill small holes into the area to check the extent of the rot. If the rot is significant, you’ll need to replace the entire transom.

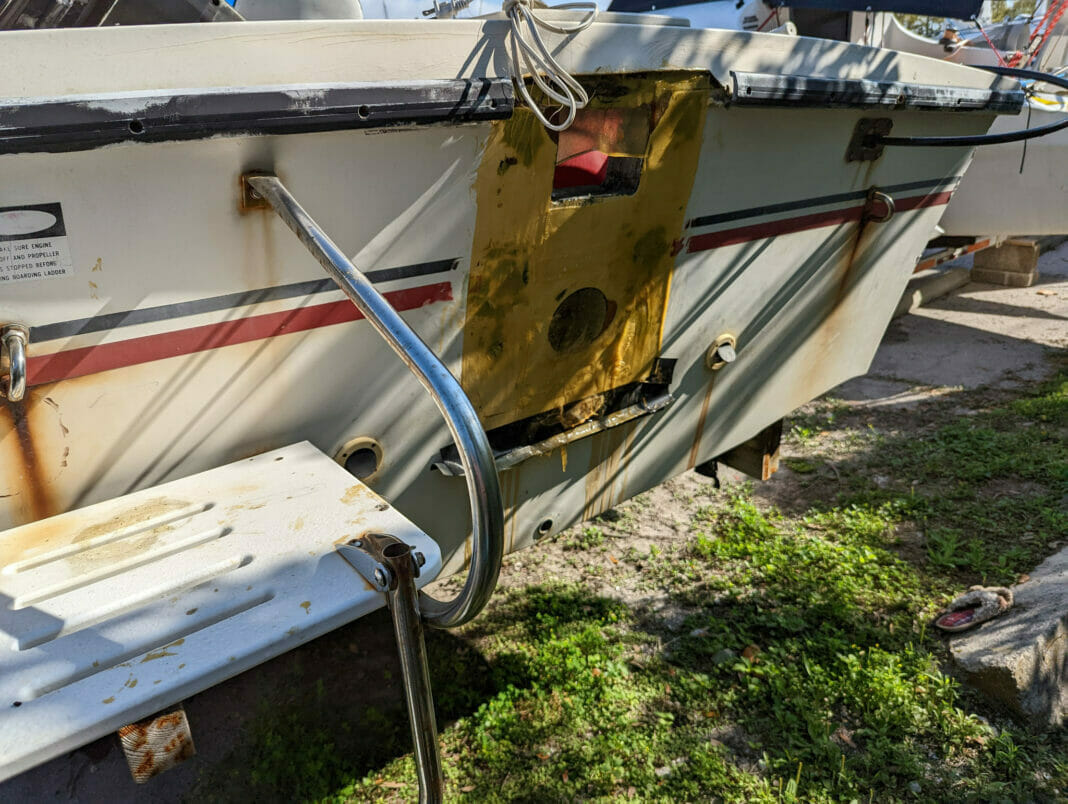

Step 2: Remove the Old Transom

The next step is to remove the old transom. Start by removing any hardware or components attached to the transom, such as the motor, trim tabs, or swim platform. Once all hardware is removed, you can begin cutting the transom away from the hull. You’ll need to use a saw or grinder to cut through the fiberglass layer, being careful not to damage the surrounding hull.

Step 3: Prepare the Hull for the New Transom

With the old transom removed, it’s time to prepare the hull for the new transom. The hull must be cleaned and sanded to ensure a smooth surface for the new transom to bond to. You may also need to reinforce the hull with additional fiberglass and resin to support the new transom.

Step 4: Install the New Transom

Once the hull is prepared, it’s time to install the new transom. The new transom should be cut to size to fit the hole in the hull. You can use marine-grade plywood, foam, or composite materials to make the new transom. Once the new transom is in place, you’ll need to reinforce it with fiberglass and resin to create a solid bond with the hull.

Step 5: Reinstall the Hardware

Once the new transom is in place and fully cured, it’s time to reinstall any hardware or components you removed earlier. This may include the motor, trim tabs, and swim platform. Be sure to use marine-grade hardware to ensure longevity and reliability.

In Conclusion

Replacing a rotten transom is a major undertaking, but it’s a critical aspect of maintaining your boat’s safety and reliability. By following these steps, you can ensure that your boat’s transom is in excellent condition and ready for years of trouble-free use. It’s essential to use high-quality materials and work with an experienced boat mechanic if you’re not confident in your ability to complete the task yourself. But with the right tools, materials, and knowledge, replacing a rotten transom is a manageable task that any boat owner can tackle.
